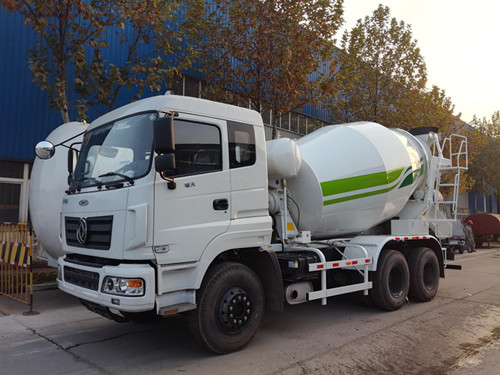

Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck

Product Categories

Zhengzhou Dongfeng Mid-South Enterprise Co., Ltd.

Contact Now

Name: Dongfeng Concrete Mixing Transport Trucks 10m LHD RHD Cement Mixer Truck
Brand: Dongfeng
Price: 40000 USD

Brand Name : Dongfeng

Place of Origin : China

MOQ : 1unit

Price : USD40000-80000/unit

Delivery Time : 30 days after receive deposit

Product name : Concrete Mixer Truck

Capacity : 10m³

Color : According to customer's requirement

Engine : Cummins

Hydraulic pump : Rexroth brand

Gearbox : FAST gearbox

Contact Now

Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck

Dongfeng Concrete Mixing Transport Trucks 10m³ LHD RHD Cement Mixer Truck

Specification
Drive mode	6×4
Engine	Model	L340 30
	Type	6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR
	Max. power(Kw/rpm)	250/2200
	Max. torque(N.m/rpm)	1350/1400
	Displacement(ml)	8900
	Type of fuel	Diesel
	Compression ratio	(16.6±0.5):1
Cab	D310-S1	single berth
Gearbox	Model	9JS150T-B
Gearbox	Max.torque(N.m)	1500
Clutch	Φ430mm	diaphragm spring clutch
Frame Height×Width× Thickness(mm)	300×90×(8+6)
Frame Height×Width× Thickness(mm)	Frame width 940 (front ), Frame width 810 ( rear )
Tyre	Size	11.00-20
Air conditioner	A/C
Dimensions	Overall dimension (mm)	9040×2500×3930
	Wheel base (mm)	3800+1350
	Front/Rear tread(mm)	1986/1860
	Appr./Depa. angel (°)	30/18
	Min. ground cleanrance(mm)	250
Mass	Payload(Kg)	11805,11870
	Curb weight(Kg)	13000
	G.V.W(Kg)	25000
Performance	Max. speed(Km/h)	80
	Max. gradeability(%)	40
	Min. turning diameter(m)	23
	Fuel consumption(L/100Km)	36
Special function	Mixing capacity(m³)	10
	Angel of inclination of mixing drum(°)	13.5
	Geometric volume(m³)	15.96
	Filling ratio(%)	58
	Feeding speed(m³/min)	≥3
	Discharge speed(m³/min)	≥2
	Residual ratio(%)	＜0.2
	Collapsed degree range(mm)	40-210
	Hydraulic pump	MA4VG90, Italy
	Hydraulic motor	MF090W, Italy
	Decelerator	577L3131AX1A, Italy
